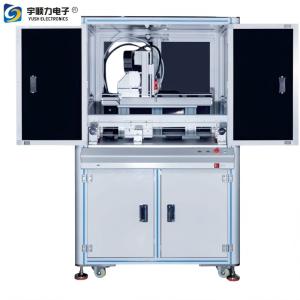

Full Automatic/High Quality Three Anti-Paint Automatic Coating For SMT Production Line
Specification Sheets
| mode |
Automatic coating machine | ||
|
Trip(mm) |
(travel customizable) | ||
|
programmatically |
Import teaching programming or graphics | ||
|
Can movethegraphtrack |
Point,line,arc,circle,curve,multiple lines,spiral,ellipse | ||
|
Dispensing head |
Precision dispensing valve | ||
|
Glue barrel |
Capacityoptional | ||
|
Minimum discharge |
0.01ml | ||
|
The gluefrequency |
5 times/SEC. | ||
|
load |
Y/Xaxle load |
10kg | |
|
Z axle load |
5kg | ||
|
Axialdynamicspeed X/Y/Z(mm) |
0-600mm/sec | ||
|
Resolvingpower |
0.01mm/Axis | ||
|
Repeatability positioning accuracy(mm) |
Screw drive |
0.01-0.02 | |
|
Synchronousbeltdrive |
0.02-0.04 | ||
|
Programrecord mode |
At least 100,5000 pointseach | ||
| Displaymode |
LCD Teaching box | ||
|
Motorsystem |
Japan precision micro stepping motor | ||
|
Drivemode |
Guide |
Taiwan upper silver linear guide rail | |
|
Wirerod |
Taiwan silver bar | ||
|
Belt |
Italy Italy Lartey synchronous belt | ||
|
XYZ axis synchronous belt for standard configuration,Zaxis screw rod is optional,XYZ axis screw rod for customization | |||
|
Motion filling function |
3 axis(3 Three dimensional space,any route can) | ||
|
Input power |
Full voltageAC110V-220V | ||
|
External control interface |
RS232 | ||
|
Motorcontrolshaft number |
3 axis | ||
|
Axis range(mm) |
Xaxis |
300 | |
|
Yaxis |
300 | ||
|
Zaxis |
100 | ||
|
Outline size(mm) |
530/589/632 | ||
| Bodyweight(KG) | 45KG | ||
